Skate Wheel Bearing

This series of conveyor roller bearings offers 14 standard models suitable for light to medium-duty conveyor systems. The range includes standard, extended, widened, and special structural types to meet various assembly requirements.

Product Features

Complete model range: Covers standard, extended, widened, solid, and spline-fitting structures

Industrial dimensions: 5mm/8mm inner diameter, 22-70mm outer diameter, 7-50mm width

Specialized designs: Solid types, spline-fitting type,s and non-bearing types for specific mounting needs

Applications
Suitable for roller maintenance and assembly in belt conveyors, roller conveyors, logistics sorting systems, and packaging production lines.

PREV：Beaded Omnidirectional Wheel
NEXT：With Pearl Skate Wheel Bearing

Parameter

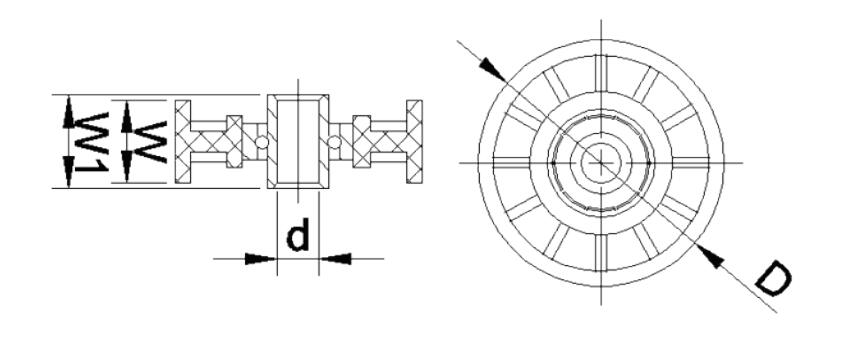

Diagram
Contact

Model	1	2	3	4	5	6	7	8	9	10	11	12	13	14
d(φ)	5	8	8	8	8	8	8	8	8	8	8	8	12	8
D(φ)	22	26	30	38	38	38	48	48	48	48	48	48	48	70
W(mm)	20	8	24	14	14	24.5	16	16	16	16	16	16	16	16
W1(mm)	25.5	18	28.5	18	28.5	28.5	18	18	7	28.5	50	None	8	28.5
Specification	Standard	Standard	Extended & Widened	Extended & Widened	Extended	Extended & Widened	Solid	Spline	Spline	Extended	Extra Long	Bearingless	6001-12 Shaft	Standard
