Beaded Omnidirectional Wheel

The beaded omnidirectional wheel is a functional component designed for multi-directional material movement and positioning. Its working surface consists of multiple independently rotating beads, allowing items to move freely in various directions when in contact with the wheel. This design supports flexible handling and directional adjustment in conveying and workstation environments.

Product Features

Multiple independently rotating beads are distributed on the surface

Supports longitudinal, lateral, and combined directional movement

Beaded structure helps distribute contact forces

Suitable for flat conveying and auxiliary guiding applications

Can be installed on platforms, worktables, or guiding assemblies

Product Advantages

Enables multi-directional movement without a powered drive

Reduces directional constraints during material handling

Supports flexible positioning in workstations and handling areas

Compatible with various conveying and handling components

Easy integration into existing system layouts

Application Areas

Sorting and turning worktables

Assembly stations and manual handling zones

Multi-directional guiding points in automated conveyor lines

Logistics, warehousing, and packaging systems

Temporary material positioning and adjustment areas

PREV：No previous article
NEXT：Skate Wheel Bearing

Parameter

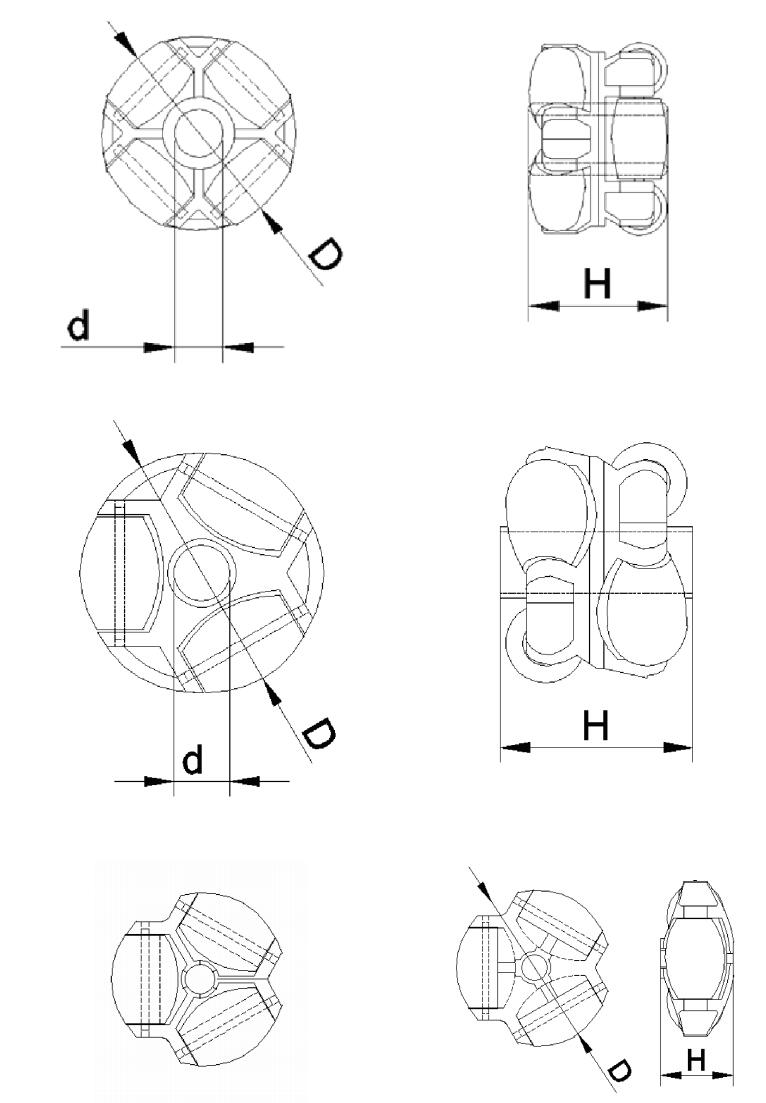

Diagram
Contact

D(φ)	40	40	50	50	52	60	60	60	60	60	60
No. of Balls	8	8	6	6	6	6	6 Standard	6 Standard	6 Raised	6 Raised	6 Raised
d(φ)	8	10	8	10	12	15	12	S11	10	12	S11
H(mm)	29	29	40	40	40	40	40	40	44	44	44

D(φ)	60	70	70	70	70	70	48	82	82	82	82	100
No. of Balls	6 Raised	8	8	8	8	8	6 Double-layer	6 Double-layer	6 Double-layer	6 Double-layer	6 Double-layer	8 Double-layer
d(φ)	S12	15	20	S14	S16	S17	8	12	S11	S13	S14	S20
H(mm)	44	46	46	46	46	46	40	65	65	65	65	66
