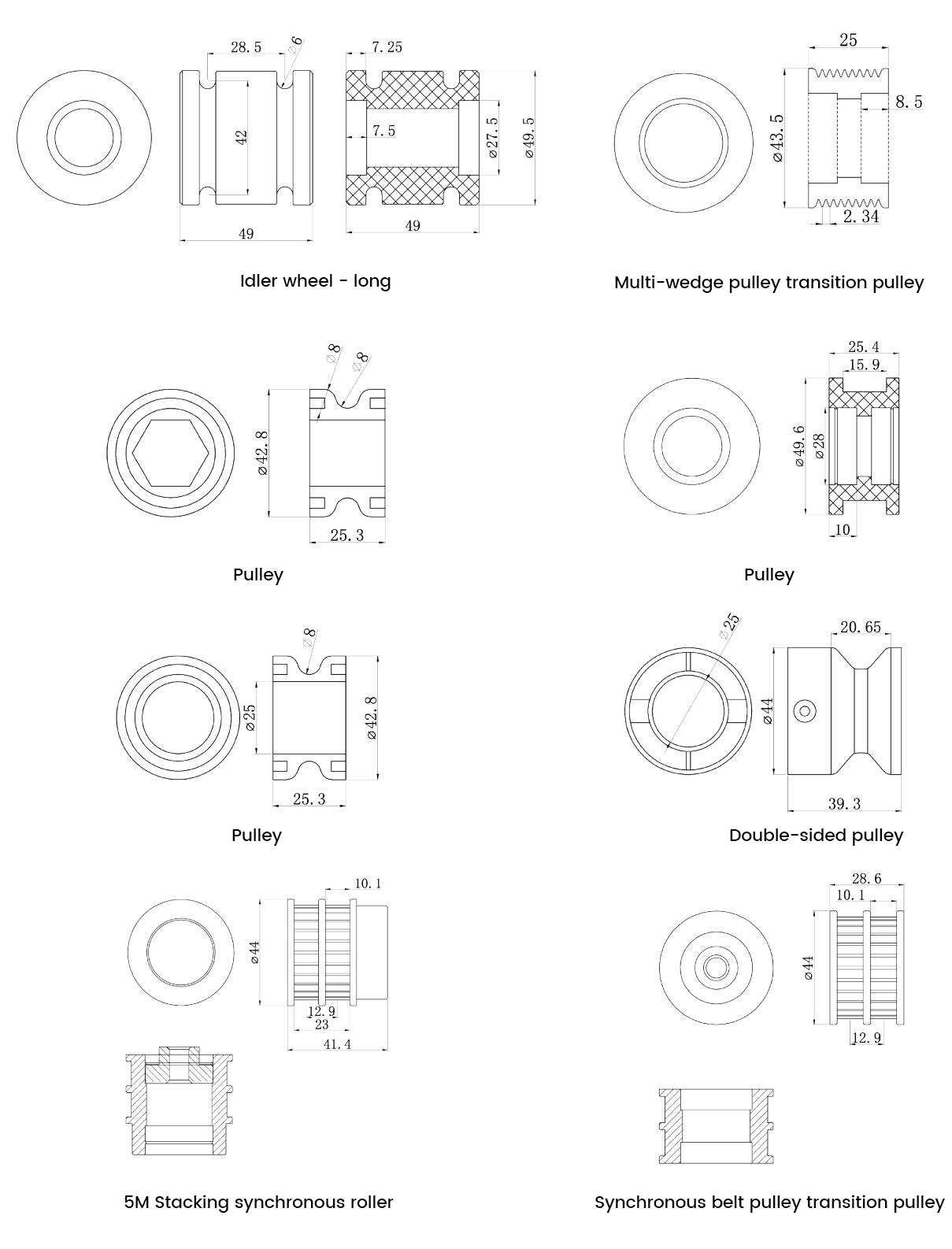

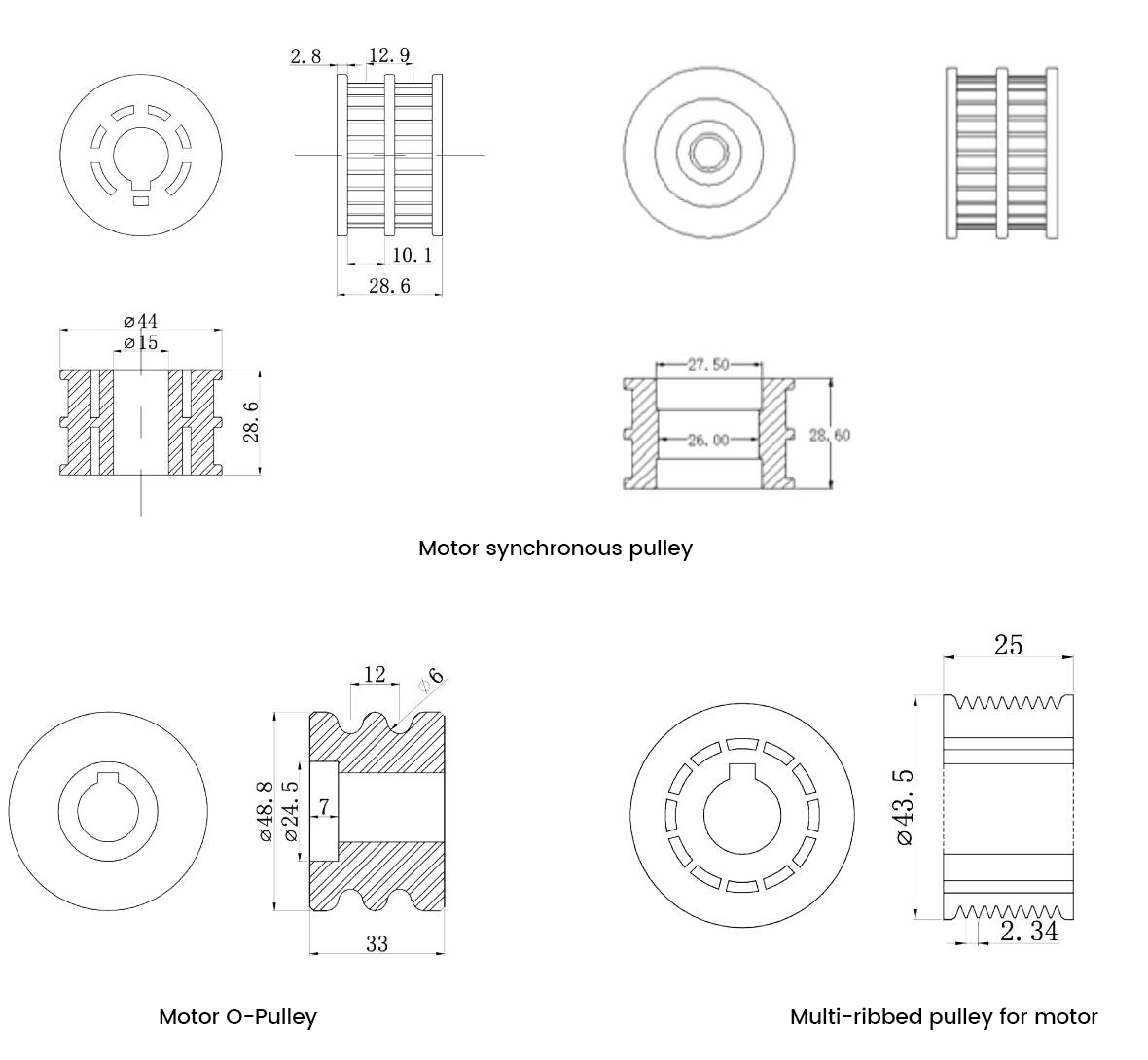

Roller Transition Wheel

The transition wheel is used in conveyor systems to support material transfer between different conveyor sections. It is typically installed at connection points where the conveying direction changes, height differences occur, or conveyor structures transition. By providing rotational support at these points, the transition wheel helps ensure continuous material flow across conveyor interfaces.

During operation, when items move from one roller section to another or enter a transition zone, the wheel serves as an intermediate support, guiding materials smoothly through the structural change without interruption.

Structural and Functional Characteristics

The wheel structure is designed to support material movement through transition zones

Installed at junctions between conveyor rollers or sections

Rotational movement helps reduce resistance during transfer

Suitable for continuous conveying operations

Compatible with various roller conveyor layouts

Functional Benefits

Maintains continuity of material flow during conveyor transitions

Helps reduce irregular movement or stoppage at connection points

Supports stable conveying rhythm across system nodes

Allows flexible layout in systems with frequent structural changes

Typical Applications

Connection points between roller conveyor sections

Direction-changing or curved conveyor areas

Height transition zones within conveyor systems

Automated production and material handling lines

Logistics, packaging, and sorting conveyor equipment
