Chain Conveyor Tension Wheel

The chain conveyor tension wheel is a tension adjustment device used in chain drive systems, maintaining continuous chain tension through positional adjustment. Utilizing rolling contact, this device compensates for chain length variations caused by wear or temperature changes during operation, ensuring stable performance of the transmission system.

Technical Features

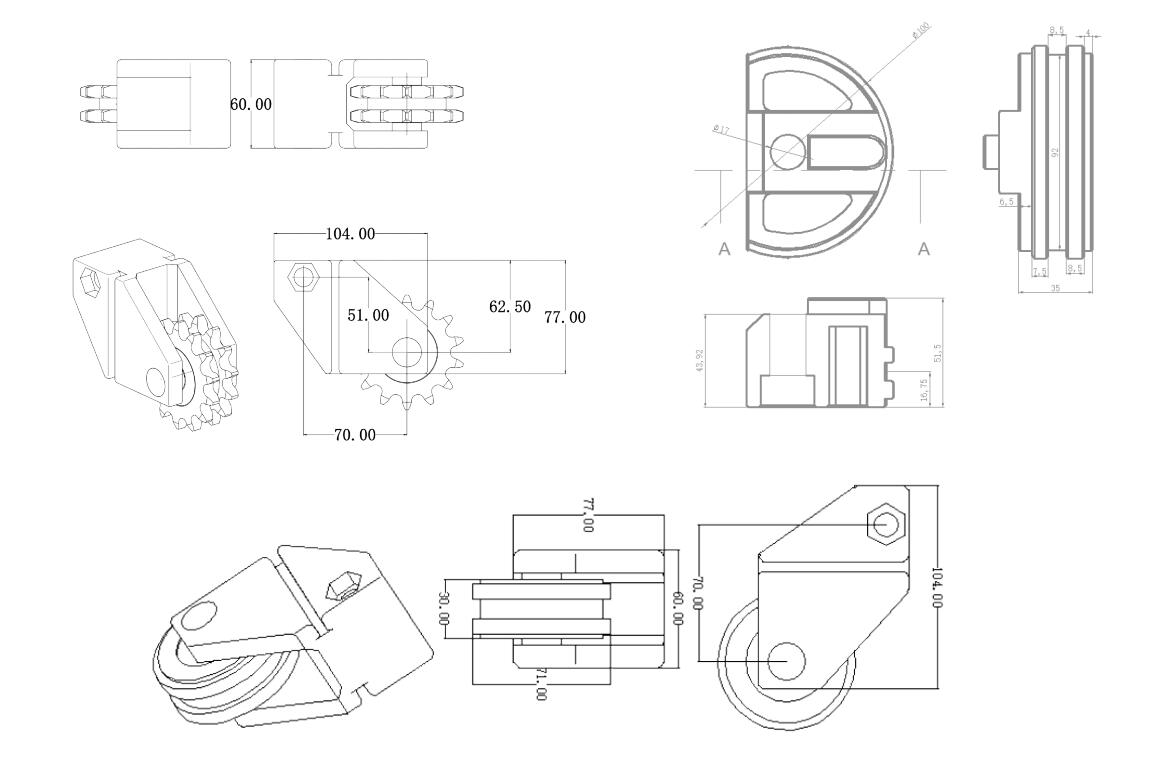

Structural Design: Grooved wheel periphery meshes with chain pitch configuration

Adjustment Mechanism: Equipped with screw-type or spring-based adjustment systems enabling linear position control

Bearing System: Integrated sealed rolling bearings support continuous operation under high-speed conditions

Mounting Options: Available with fixed base or sliding block installations for different frame structures

Functional Role
Maintains preset chain tension to prevent disengagement caused by slack

Compensates for natural chain elongation during service life, extending chain durability

Reduces frictional wear through rolling contact, lowering system energy consumption

Modular design enables retrofitting and adjustment within existing conveyor systems

Application Scope
Suitable for various chain conveyor systems, including automated assembly lines, packaging machinery transmission systems, mining conveyor equipment, agricultural machinery drives, and industrial production line material handling systems requiring consistent chain tension maintenance.
